This item is currently not available.
Details

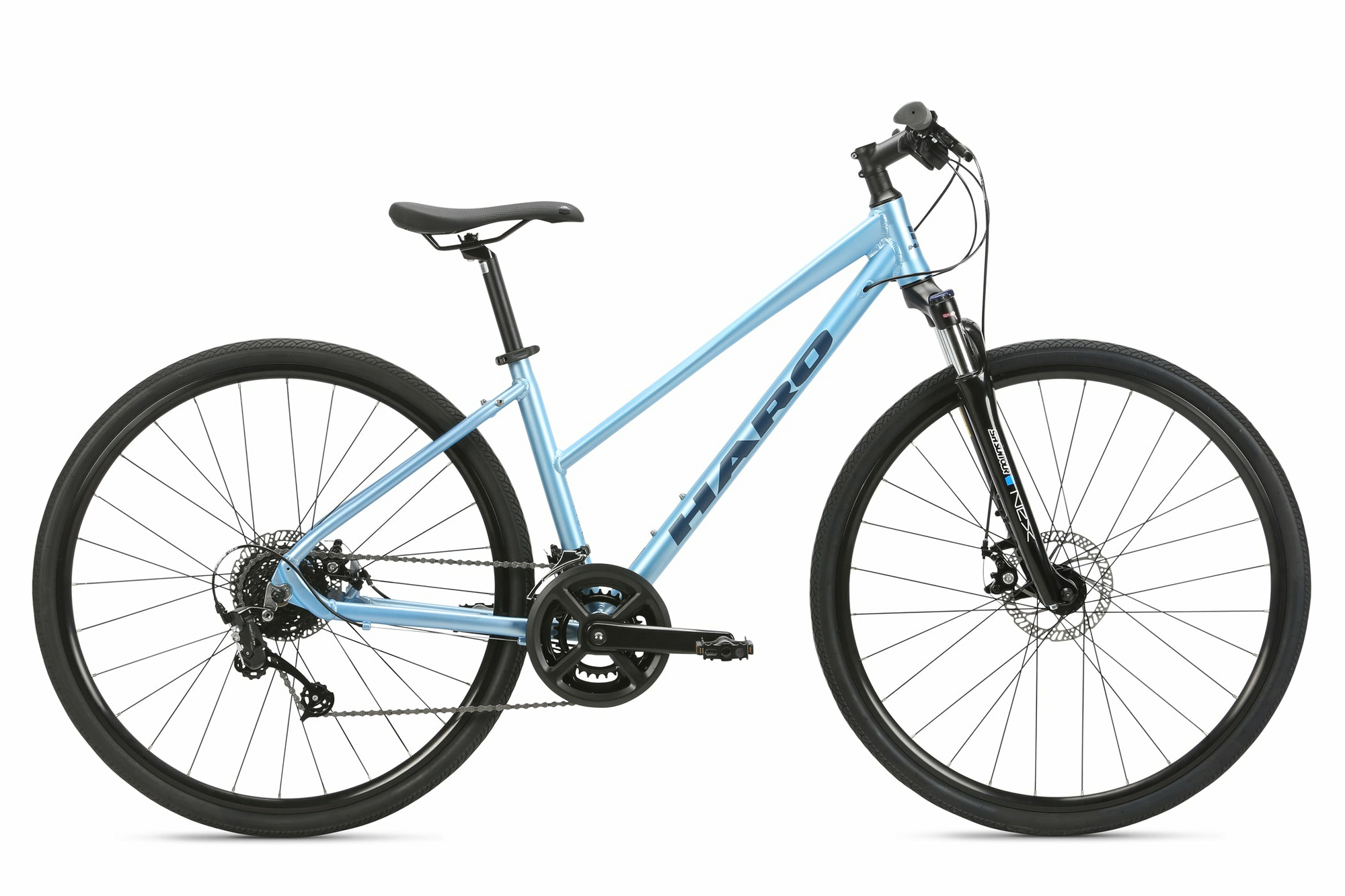

Bridgeport ST MicroSHIFT from Haro.
| SIZE | X-Small | Small |
|---|---|---|
| A. Seat Tube (C-T) | 355mm (14") | 406mm (16") |
| B. Top Tube (Effective) | 550mm (21.7") | 572mm (22.5") |
| C. Head Tube Angle | 70° | 70° |
| D. Seat Tube Angle | 74° | 74° |
| E. Chainstay Length | 445mm (17.5") | 445mm (17.5") |
| F. BB Drop | 60mm (2.4") | 60mm (2.4") |
| G. Wheelbase | 1058mm (41.7") | 1081mm (42.6") |
| H. Head Tube Length | 105mm (4.1") | 115mm (4.5") |
| I. Standover | 682mm (26.9") | 695mm (27.4") |
| J. Stack Height | 587mm (23.1") | 596mm (23.5") |
| K. Reach | 381mm (15") | 400mm (15.7") |
| L. Fork Height | 468mm (18.4") | 468mm (18.4") |
| M. Fork Offset | 42mm (1.7") | 42mm (1.7") |
| N. Stem Length | 75mm | 90mm |
| O. Bar Width | 620mm | 620mm |
| P. Crank Length | 170mm | 170mm |
| Size | Inches | CM |
|---|---|---|
| X-Small | 5' - 5'4" | 152.5 - 162.5 |
| Small | 5'3" - 5'7" | 160 - 170 |
Specs
| Fork | Suntour SF20 NEX HLO-DS, 63mm travel |Hydraulic Lockout, Post-mount |
|---|---|
| Hubs | KT-68 alloy 28H, Cassette rear hub, Front & rear quick release |
| Stem | Haro Alloy, 7° rise, 70mm / 90mm / 100mm |
| Chain | KMC Z8.1, 8-speed |
| Frame | 6061-T6 aluminum, Rider-tuned geometry, 68mm BSA BB shell, Flat mount |
| Tires | Kenda Kwick Bitumen, 700 x 38c |
| Brakes | Tektro MD-M280, Mechanical disc, IS 6-bolt rotors, F: 180mm, R: 160mm |
| Saddle | Haro, Dual-sport tuned padding, Weather-resistant cover |
| Wheels | Haro 700c, 19mm inner width, 28h, Alloy double wall, Disc-brake specifc |
| Headset | Haro 1-1/8" threadless Internal, For 50mm OD headtube |
| Crankset | Prowheel TB-CY01, 46/30T, 8-speed, 170 / 175mm |
| Seatpost | Haro Alloy, Micro-Adjust, 27.2mm x 350mm, single Bolt |
| Shifters | Microshift TS39-2 & FD-T202, 2 x 8-speed |
| Chainrings | 46/30T |
| Handlebars | Haro Alloy, 25mm rise, 31.8mm x 640 / 660mm, 9° backsweep |
| Tape/Grips | Haro, Dual-density durometer, Active tuned |
| Brake Levers | Alloy 3-finger |
| Bottom Bracket | Feimin FP-902W, Threaded BSA 68mm BB shell, 123mm spindle, Sealed cartridge |
| Rear Derailleur | Microshift TS39-2 & FD-T202, 2 x 8-speed |
| Accessories & Extras | Rack and fender mounts |
| Cassette/Freewheel | Mid-range, CS-M5008 8-Speed 11-34T, ED Black |
* Subject to change without notice.
