Bontrager Race Lite Stem

Bontrager Race Lite Stem
  • Rise: 17°
  • Rise: 17°
  • Rise: 25°
  • Rise: 25°
  • Rise: 40°
  • Rise: 40°
$60.00
Clamp Diameter:
31.8mm
Steerer Diameter:
1-1/8-inch
Please select options

Details

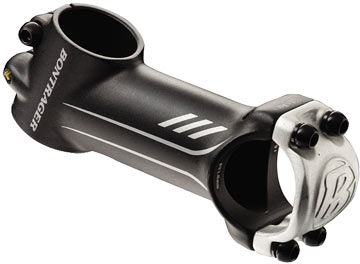

Bontrager's Race Lite Stem is a reliable race-ready part worthy of high-end road and mountain machines. Thanks to its one-piece, cold-forged 6061-T6 aluminum construction, it's strong, light and stiff. The CNC-machined 4-bolt faceplate is ultra tough and evenly distributes clamping forces your bars. And, the angled, opposing-bolt steerer clamp is safe, secure and compatible with carbon steerers.

Stem angle is one of the factors that determines handlebar height. A listed angle of 0 degrees actually provides a rise of 16-20 degrees, depending on the bike's head-tube angle. Flexible, athletic riders prefer lower-rise stems, while recreational riders usually favor higher-rise stems.

Stem length is measured along the side of the stem from the center of the steerer to the center of the handlebar clamp (see diagram). Keep in mind that as a stem provides more rise, its effective length decreases. In the example above, if the +17-degree stem measures 135 mm, it actually extends 108 mm parallel to the ground.

Part Numbers

Option UPC MPN Store SKU
31.8mm / Black / 75mm / 17° / 1-1/8-inch 745889661248 409291
31.8mm / Black / 75mm / 40° / 1-1/8-inch 745889662146 409321
31.8mm / Black / 80mm / 17° / 1-1/8-inch 745889661361 409297
31.8mm / Black / 90mm / 25° / 1-1/8-inch 745889661620 409310
31.8mm / Black / 90mm / 40° / 1-1/8-inch 745889662160 409322
31.8mm / Black / 100mm / 17° / 1-1/8-inch 745889660524 409255
31.8mm / Black / 105mm / 17° / 1-1/8-inch 745889660647 409261
31.8mm / Black / 105mm / 25° / 1-1/8-inch 745889661644 409311
31.8mm / Black / 105mm / 40° / 1-1/8-inch 745889662184 409323
31.8mm / Black / 110mm / 17° / 1-1/8-inch 745889665666 411477 STE37359839K
31.8mm / Black / 120mm / 17° / 1-1/8-inch 745889660883 409273
31.8mm / Black / 120mm / 25° / 1-1/8-inch 745889661965 409312
31.8mm / Black / 120mm / 40° / 1-1/8-inch 745889662207 409324
31.8mm / White / 75mm / 17° / 1-1/8-inch 745889661286 409293
